JIS B2401-P Series O-Rings (Dynamic seal)
The JIS B2401-P series is the most commonly used general-purpose O-ring specification under Japanese Industrial Standards. It is suitable for both static and dynamic applications in a wide range of industries.
Key Features:
- Based on the JIS B2401 Pressure (P) series standard
- Designed for sealing in bores and shafts under pressure
- Available in various materials and durometers (NBR, FKM, EPDM, etc.)
- Widely used in hydraulics, pneumatics, home appliances, and Japanese industrial machinery
Application
Automated Industrial Equipment
Manual and Pneumatic Tools
Packaging Industry
Toy Industry — Model Car Tires
Food and Beverage Industry
Home Appliance Industry
Sporting Goods Industry
Building Industry
Agricultural Industry
Piping and Drainage Systems
Semiconductor Industry
New Energy Technology Industry
Electronics Industry
Military Industry
Automotive Industry
Aviation Industry
Marine Industry
Railway Industry
Bicycle Industry

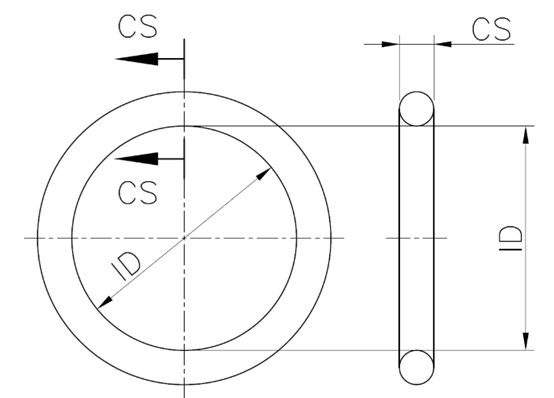

Specifications (Metric mm)
Item
PART NO.
O-RING/P SERIES
SIZE m/m/I.D
SIZE m/m/CS
Add to Quote
POP0003
P 3
2.8
1.9
POP0004
P 4
3.8
1.9
POP0005
P 5
4.8
1.9
POP0006
P 6
5.8
1.9
POP0007
P 7
6.8
1.9
POP0008
P 8
7.8
1.9
POP0009
P 9
8.8
1.9
POP0010
P 10
9.8
1.9
POP010A
P 10A
9.8
2.4
POP0011
P 11
10.8
2.4
POP0012
P 12
11.8
2.4
POP0013
P 13
12.8
2.4
POP0014
P 14
13.8
2.4
POP0015
P 15
14.8
2.4
POP0016
P 16
15.8
2.4
POP0017
P 17
16.8
2.4
POP0018
P 18
17.8
2.4
POP0019
P 19
18.8
2.4
POP0020
P 20
19.8
2.4
POP0021
P 21
20.8
2.4
POP0022
P 22
21.8
2.4
POP022A
P 22A
21.7
3.5
POP0024
P 24
23.7
3.5
POP0025
p 25
24.7
3.5
POP0026
P 26
25.7
3.5
POP0028
P 28
27.7
3.5
POP0029
P 29
28.7
3.5
POP0030
P 30
29.7
3.5
POP0031
P 31
30.7
3.5
POP0032
P 32
31.7
3.5
POP0034
P 34
33.7
3.5
POP0035
P 35
34.7
3.5
POP0036
P 36
35.7
3.5
POP0038
P 38
37.7
3.5
POP0039
P 39
38.7
3.5
POP0040
P 40
39.7
3.5
POP0041
P 41
40.7
3.5
POP0042
P 42
41.7
3.5
POP0044
P 44
43.7
3.5
POP0045
P 45
44.7
3.5
POP0046
P 46
45.7
3.5
POP0048
p48
47.7
3.5
POP0049
P 49
48.7
3.5
POP0050
P 50
49.7
3.5
POP048A
P 48A
47.6
5.7
POP050A
P 50A
49.6
5.7
POP0052
P 52
51.6
5.7
POP0053
P 53
52.6
5.7
POP0055
P 55
54.6
5.7
POP0056
P 56
55.6
5.7
POP0058
P 58
57.6
5.7
POP0060
P 60
59.6
5.7
POP0062
P 62
61.6
5.7
POP0063
P 63
62.6
5.7
POP0065
P 65
64.6
5.7
POP0067
P 67
66.6
5.7
POP0070
P 70
69.6
5.7
POP0071
P 71
70.6
5.7
POP0075
P 75
74.6
5.7
POP0080
P 80
79.6
5.7
POP0085
P 85
84.6
5.7
POP0090
P 90
89.6
5.7
POP0095
P 95
94.6
5.7
POP0100
P 100
99.6
5.7
POP0102
P 102
101.6
5.7
POP0105
P 105
104.6
5.7
POP0110
P 110
109.6
5.7
POP0112
P 112
111.6
5.7
POP0115
P 115
114.6
5.7
POP0120
P 120
119.6
5.7
POP0125
P 125
124.6
5.7
POP0130
P 130
129.6
5.7
POP0132
P 132
131.6
5.7
POP0135
P 135
134.6
5.7
POP0140
P 140
139.6
5.7
POP0145
P 145
144.6
5.7
POP0150
P 150
149.6
5.7
POP150A
P 150A
149.5
8.4
POP0155
P 155
154.5
8.4
POP0160
P 160
159.5
8.4
POP0165
P 165
164.5
8.4
POP0170
P 170
169.5
8.4
POP0175
P 175
174.5
8.4
POP0180
P 180
179.5
8.4
POP0185
P 185
184.5
8.4
POP0190
P 190
189.5
8.4
POP0195
P 195
194.5
8.4
POP0200
P 200
199.5
8.4
POP0205
P 205
204.5
8.4
POP0209
P 209
208.5
8.4
POP0210
P 210
209.5
8.4
POP0215
P 215
214.5
8.4
POP0220
P 220
219.5
8.4
POP0225
P 225
224.5
8.4
POP0230
P 230
229.5
8.4
POP0235
P 235
234.5
8.4
POP0240
P 240
239.5
8.4
POP0245
P 245
244.5
8.4
POP0250
P 250
249.5
8.4
POP0255
P 255
254.5
8.4
POP0260
P 260
259.5
8.4
POP0265
P 265
264.5
8.4
POP0270
P 270
269.5
8.4
POP0275
P 275
274.5
8.4
POP0280
P 280
279.5
8.4
POP0285
P 285
284.5
8.4
POP0290
P 290
289.5
8.4
POP0295
P 295
294.5
8.4
POP0300
P 300
299.5
8.4
POP0315
P 315
314.5
8.4
POP0320
P 320
319.5
8.4
POP0335
P 335
334.5
8.4
POP0340
P 340
339.5
8.4
POP0355
P 355
354.5
8.4
POP0360
P 360
359.5
8.4
POP0375
P 375
374.5
8.4
POP0385
P 385
384.5
8.4
POP0400
P 400
399.5
8.4
POP0425
P 425
425.5
8.4
POP0460
P 460
459.5
8.4
POP0560
P 560
559.5
8.4
Specifications
| 變體 | POP0560 |
| PART NO. | POP0003 |
| O-RING/P SERIES | P 3 |
| SIZE m/m/I.D | 2.8 |
| SIZE m/m/CS | 1.9 |
