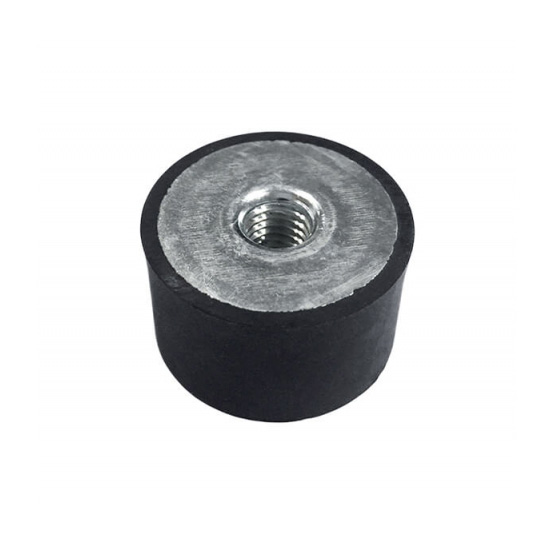

TYPE F(TYPE E)Rubber Buffers

- Elastomer: Natural Rubber
- Hardness: 50/60/70 ShA
- Metal Part: Steel, Zinc Plated / SUS 304
- Tolerance: ISO 3302-1 M2
Application

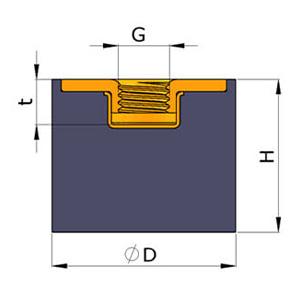

Specifications (Metric mm)
Item
Zinc Plated
SUS
D
H
G
t
Add to Quote
PBF4011A
PBF7024A
8
8
M3
3
PBF4012A
PBF4073A
10
10
M4
4
PBF4013A
PBF4074A
10
15
M4
4
PBF4142A.
-
15
7
M4
4
PBF4143A.
-
15
8
M4
4
PBF4014A
PBF4077A
15
10
M4
4
PBF4015A
PBF4078A
15
15
M4
4
PBF4016A
PBF4079A
15
15
M5
5
PBF4144A.
-
15
20
M4
4
PBF4145A.
-
15
30
M4
4
PBF4146A.
-
15
10
M5
5
PBF4147A.
-
15
20
M5
5
PBF4148A.
-
15
30
M5
5
PBF4023A
PBF4080A
20
10
M6
6
PBF4024A
PBF4081A
20
11
M6
6
PBF4025A
PBF4082A
20
12
M6
6
PBF4026A
PBF4083A
20
13.5
M6
6
PBF4027A
PBF4084A
20
15
M6
6
PBF4153A
-
20
15
M6
8
PBF4028A
PBF4085A
20
20
M6
6
PBF4029A
PBF4086A
20
25
M6
6
PBF4061A
PBF4066A
25
10
M6
6
PBF4062A
PBF4067A
25
15
M6
6
PBF4063A
PBF4068A
25
20
M6
6
PBF4064A
PBF4069A
25
25
M6
6
PBF4065A
PBF4071A
25
30
M6
6
PBF4030A
PBF4087A
30
15
M8
8
PBF4031A
PBF4088A
30
17
M8
8
PBF4032A
PBF4089A
30
20
M8
8
PBF4033A
PBF4090A
30
25
M8
8
PBF4034A
PBF4091A
30
30
M8
8
PBF4149A.
-
30
35
M8
8
PBF4035A
PBF4092A
30
40
M8
8
PBF4036A
PBF4096A
40
20
M8
8
PBF4038A
PBF4098A
40
25
M8
8
PBF4039A
PBF4099A
40
30
M8
8
PBF4041A
PBF4101A
40
40
M8
8
PBF4037A
PBF4097A
40
20
M10
10
PBF4150A.
-
40
25
M10
10
PBF4040A
PBF4100A
40
30
M10
10
PBF4151A.
-
40
40
M10
10
PBF4017A
PBF4102A
50
20
M10
10
PBF4018A
PBF4103A
50
25
M10
10
PBF4019A
PBF4104A
50
28
M10
10
PBF4020A
PBF4105A
50
30
M10
10
PBF4042A
PBF4106A
50
35
M10
10
PBF4021A
PBF4107A
50
40
M10
10
PBF4043A
PBF4108A
50
45
M10
10
PBF4022A
PBF4109A
50
50
M10
10
PBF4044A
PBF4115A
60
30
M10
10
PBF4045A
PBF4116A
60
30
M12
12
PBF4046A
PBF4117A
60
40
M10
10
PBF4047A
PBF4118A
60
40
M12
12
PBF4048A
PBF4119A
70
25
M10
10
PBF4049A
PBF4120A
70
30
M10
10
PBF4050A
PBF4121A
70
45
M10
10
PBF4051A
PBF4122A
70
25
M12
12
PBF4052A
PBF4123A
75
40
M12
12
PBF4053A
PBF4124A
75
45
M12
12
PBF4054A
PBF4125A
75
50
M12
12
PBF4055A
PBF4126A
75
55
M12
12
PBF4056A
PBF4110A
100
40
M16
16
PBF4057A
PBF4111A
100
50
M16
16
PBF4058A
PBF4112A
100
55
M16
16
PBF4059A
PBF4113A
100
60
M16
16
PBF4060A
PBF4114A
100
75
M16
16
PBF4093A
-
150
45
M16
16
PBF4094A
-
150
50
M16
16
PBF4095A
-
150
55
M16
16
PBF4152A.
-
150
60
M16
16
PBF4075A
-
150
75
M16
16
PBF4076A
-
150
100
M20
20
Specifications
變體 | PBF4076A |
Zinc Plated | PBF4011A |
SUS | PBF7024A |
D | 8 |
H | 8 |
G | M3 |
t | 3 |
