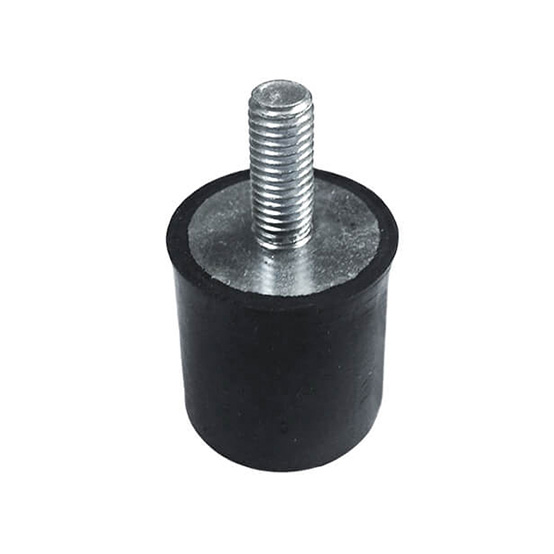

TYPE M（TYPE D）Rubber Buffers
- Elastomer: Natural Rubber
- Hardness: 50/60/70 ShA
- Metal Part: Steel, Zinc Plated / SUS 304
- Tolerance: ISO 3302-1 M2
Specifications (Metric mm)
Item
Zinc Plated
SUS
D
H
G
I
Add to Quote
PBF3202A
PBF3203A
8
8
M3
6
PBF3078A
PBF3108A
10
10
M4
10
PBF3079A
PBF3109A
10
15
M4
10
PBF3029A
-
12
6.5
M5
6
PBF3080A
PBF3116A
15
7
M4
10
PBF3081A
PBF3117A
15
8
M4
10
PBF3082A
PBF3118A
15
10
M4
10
PBF3083A
PBF3119A
15
15
M4
10
PBF3195A.
-
15
20
M4
13
PBF3196A.
-
15
30
M4
15
PBF3197A.
-
15
15
M5
10
PBF3174A.
-
15
20
M5
10
PBF3175A.
-
15
30
M5
10
PBF3054A
PBF3120A
20
5
M6
18
PBF3047A
PBF3121A
20
8
M6
18
PBF3176A
PBF3111A
20
10
M6
18
PBF3055A
PBF3122A
20
11
M6
18
PBF3198A.
-
20
12
M6
18
PBF3178A.
-
20
13.5
M6
18
PBF3019A
-
20
15
M6
12
PBF3056A
PBF3123A
20
15
M6
18
PBF3057A
PBF3124A
20
20
M6
18
PBF3058A
PBF3125A
20
25
M6
18
PBF3059A
PBF3110A
25
8
M6
18
PBF3060A
PBF3111A
25
10
M6
18
PBF3208A
-
25
13
M6
18
PBF3061A
PBF3112A
25
15
M6
18
PBF3062A
PBF3113A
25
20
M6
18
PBF3208A.
-
25
13
M6
18
PBF3077A
-
25
25
M6
10
PBF3063A
PBF3114A
25
25
M6
18
PBF3064A
PBF3115A
25
30
M6
18
PBF3065A
PBF3126A
30
15
M8
23
-
PBF3211A
30
15
M8
38
PBF3066A
PBF3127A
30
20
M8
20
PBF3009A
-
30
22
M8
12
PBF3008A
-
30
25
M8
12
PBF3067A
PBF3128A
30
25
M8
20
PBF3209A
-
30
30
M8
12
PBF3068A
PBF3129A
30
30
M8
20
PBF3179A.
-
30
35
M8
20
PBF3069A
PBF3130A
30
40
M8
20
PBF3180A.
-
40
15
M8
23
PBF3041A
-
40
13
M10
25
PBF3093A
PBF3132A
40
20
M8
23
PBF3181A.
-
40
25
M8
23
PBF3094A
PBF3133A
40
30
M8
23
PBF3096A
-
40
40
M8
23
PBF3182A.
-
40
15
M10
28
PBF3183A.
-
40
20
M10
28
PBF3184A.
-
40
25
M10
28
PBF3095A
PBF3134A
40
30
M10
28
PBF3185A.
PBF3135A
40
40
M10
28
PBF3084A
PBF3136A
50
20
M10
28
PBF3186A.
-
50
25
M10
28
PBF3187A.
-
50
28
M10
28
PBF3085A
PBF3137A
50
30
M10
28
PBF3188A.
-
50
35
M10
28
PBF3086A
PBF3138A
50
40
M10
28
PBF3087A
PBF3139A
50
45
M10
28
PBF3088A
PBF3140A
50
50
M10
28
PBF3189A.
-
60
30
M10
28
PBF3190A.
-
60
30
M12
33
PBF3089A
PBF3149A
60
40
M10
28
PBF3090A
PBF3150A
60
40
M12
33
PBF3091A
PBF3151A
70
25
M10
28
PBF3191A.
-
70
30
M10
28
PBF3092A
PBF3152A
70
45
M10
28
PBF3097A
PBF3153A
75
25
M12
37
PBF3098A
PBF3154A
75
40
M12
37
PBF3192A.
-
75
45
M12
37
PBF3099A
PBF3155A
75
50
M12
37
PBF3100A
PBF3156A
75
55
M12
37
PBF3076A
-
100
20
M16
42
PBF3166A
-
100
30
M16
80
PBF3193A.
-
100
30
M16
42
PBF3101A
PBF3141A
100
40
M16
42
PBF3102A
PBF3142A
100
50
M16
42
PBF3103A
PBF3143A
100
55
M16
42
PBF3104A
PBF3144A
100
60
M16
42
PBF3105A
PBF3145A
100
75
M16
42
PBF3199A.
-
150
45
M16
42
PBF3200A.
-
150
50
M16
42
PBF3201A.
-
150
55
M16
42
PBF3204A.
-
150
60
M16
42
PBF3205A.
-
150
75
M16
42
PBF3206A.
-
150
100
M20
47
--
PBF3213A
40
10
M10
28
Specifications
| 變體 | -- |
| Zinc Plated | PBF3202A |
| SUS | PBF3203A |
| D | 8 |
| H | 8 |
| G | M3 |
| I | 6 |
