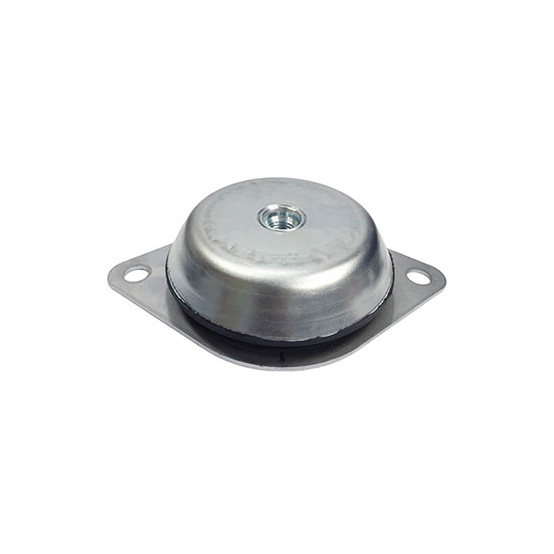

Vibration Isolation Mounts with Oval Flange(with Failsafe)
Machine Mount(with failsafe) with oval flange
- Elastomer: Natural Rubber
- Hardness: 60/70 ShA
- Metal part: Steel, Zinc Plated
- Tolerance: ISO 3302-1 M2
The failsafe mechanism is designed to prevent the metal cover from dislodging in the event of a rubber bonding failure.
Application
Automated Industrial Equipment
Packaging Industry
Home Appliance Industry
Specifications (Metric mm)
Item
P/N
D
H
G
d
D2
CF
L
s
Permissible Permanent Static Load (N)
Spring Load N/mm +/-20%
Travel (mm)
Weight (kg)
Add to Quote
PBF6047A
48
23
M8
6.2
38
68
81
1.5
2200
1250
2
0.1
PBF6031A
60
31
M10
8.3x16
46
75-90
106
3
6000
2500
2
0.26
PBF6023A
77
30
M10
9
59
110
128
2
6250
2500
2.5
0.29
PBF6032A
82
35
M10
11
64
110
128
3
9500
3500
2.5
0.46
PBF6024A
92
45
M12
10.5
73.5
110
138
3
10000
3300
2.5
0.66
PBF6025A
106
38
M12
14x18
81
138-146
172
3
11000
4100
2.5
0.75
PBF6026A
108
50
M16
16.5
83
160
190
5
8100
3200
3
1.25
PBF6027A
121
42
M16
13.5
92
158
188
3
15000
3400
3
0.98
PBF6033A
144
48
M16
14x18
120
178-186
216
4
17000
3600
3.5
1.78
Specifications
| 變體 | PBF6033A |
| P/N | PBF6047A |
| D | 48 |
| H | 23 |
| G | M8 |
| d | 6.2 |
| D2 | 38 |
| CF | 68 |
| L | 81 |
| s | 1.5 |
| Permissible Permanent Static Load (N) | 2500 |
| Spring Load N/mm +/-20% | 1250 |
| Travel (mm) | 2 |
| Weight (kg) | 0.1 |
