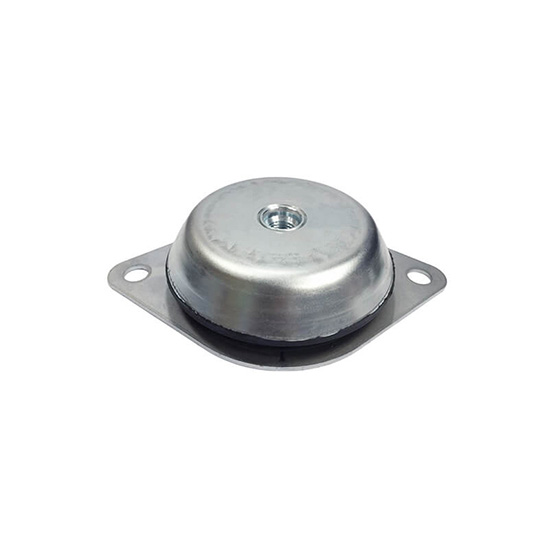

Vibration Isolation Mounts with Oval Flange (Without Failsafe)
Machine Mount(without failsafe) with oval flange
- Elastomer: Natural Rubber
- Hardness: 60/70 ShA
- Metal part: Steel, Zinc Plated
- Tolerance: ISO 3302-1 M2
Application
Automated Industrial Equipment
Packaging Industry
Home Appliance Industry
Specifications (Metric mm)
Item
P/N
D
H
G
d
D2
CF
L
s
Permissible Permanent Static Load (N)
Spring Load N/mm +/-20%
Travel (mm)
Weight (kg)
Add to Quote
PBF6037A
48
23
M8
6.2
38
68
81
1.5
2500
1250
2
0.09
PBF6038A
60
31
M10
8.3x16
46
75-90
106
3
5000
2500
2
0.23
PBF6039A
77
30
M10
9
59
110
128
2
8750
3500
2.5
0.25
PBF6040A
82
35
M10
11
64
110
128
3
6250
2500
2.5
0.41
PBF6041A
92
45
M12
10.5
73.5
110
138
3
8250
1250
2
0.09
PBF6042A
106
38
M12
14x18
81
138-146
172
3
10250
4100
2.5
0.66
PBF6043A
108
50
M16
16.5
83
160
190
5
9600
3200
3
1.11
PBF6044A
121
42
M16
13.5
92
158
188
3
10200
3400
3
0.9
PBF6045A
144
48
M16
14x18
120
178-186
216
4
10800
3600
3
1.6
Specifications
| 變體 | PBF6045A |
| P/N | PBF6037A |
| D | 48 |
| H | 23 |
| G | M8 |
| d | 6.2 |
| D2 | 38 |
| CF | 68 |
| L | 81 |
| s | 1.5 |
| Permissible Permanent Static Load (N) | 2500 |
| Spring Load N/mm +/-20% | 1250 |
| Travel (mm) | 2 |
| Weight (kg) | 0.09 |
