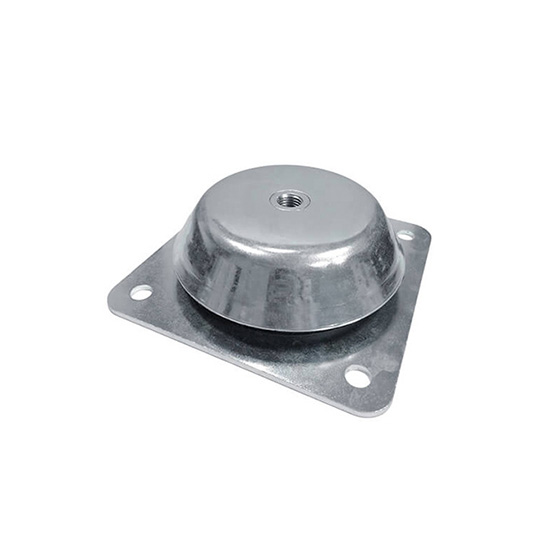

Vibration Isolation Mounts with Square Flange(with Failsafe)
Machine Mount(with failsafe) with square flange
- Elastomer: Natural Rubber
- Hardness: 60/70 ShA
- Metal part: Steel, Zinc Plated
- Tolerance: ISO 3302-1 M2
The failsafe mechanism is designed to prevent the metal cover from dislodging in the event of a rubber bonding failure.
Application
Automated Industrial Equipment
Packaging Industry
Home Appliance Industry
Specifications (Metric mm)
Item
P/N
D
H
G
d
m
D2
L
s
Permissible Permanent Static Load (N)
Spring Load N/mm +/-20% (64ShA)
Travel (mm) (64ShA)
Weight (kg)
Add to Quote
PBF6048A
101
40
M12
9
88
60
108
3
5000
2000
2.5
0.67
PBF6049A
150
51.5
M16
12.5
13
110
168
4
13000
5200
2.5
2.04
PBF6050A
177
63
M20
13
150
125
184
4.5
16800
4800
3.5
3.1
PBF6051A
192
70
M20
13
165
150
200
6
18200
5200
3.5
4.45
Specifications
| 變體 | PBF6051A |
| P/N | PBF6048A |
| D | 101 |
| H | 40 |
| G | M12 |
| d | 9 |
| m | 88 |
| D2 | 60 |
| L | 108 |
| s | 3 |
| Permissible Permanent Static Load (N) | 5000 |
| Spring Load N/mm +/-20% (64ShA) | 2000 |
| Travel (mm) (64ShA) | 2.5 |
| Weight (kg) | 0.67 |
