Vibration Isolation Mounts with Square Flange(without Failsafe)

https://www.zonrubber.com/web/image/product.template/41/image_1920?unique=625ff62

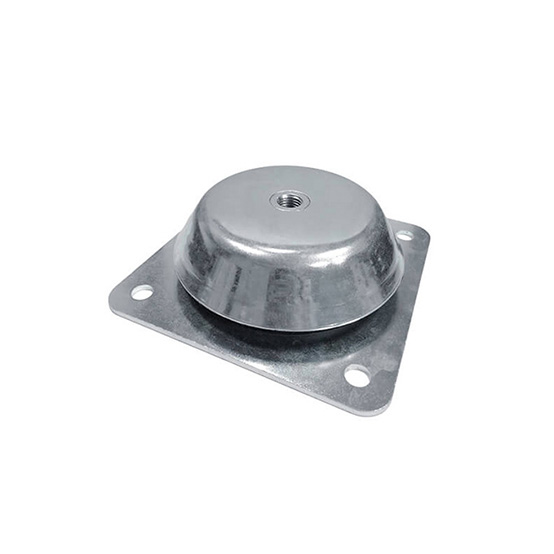

Machine Mount(without Failsafe) with Square Flange

  • Elastomer: Natural Rubber
  • Hardness: 60/70 ShA
  • Metal part: Steel, Zinc Plated
  • Tolerance: ISO 3302-1 M2

    This combination does not exist.

    Application


    Transportation

    Food & Drinking Water

    Semiconductor Electronics

    Automotive

    Medical

    Automation & Industrial Parts

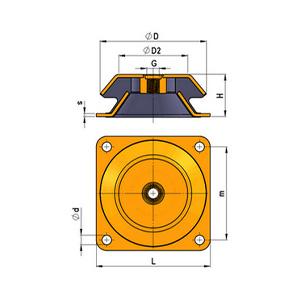

    Specifications (Metric mm)

    Previous
    Next
    Item
    P/N
    D
    H
    G
    d
    m
    D2
    L
    s
    Permissible Permanent Static Load (N)
    Spring Load N/mm +/-20% (64ShA)
    Travel (mm) (64ShA)
    Weight (kg)
    Add to Quote
    PBF6052A
    101
    40
    M12
    9
    88
    60
    108
    3
    5000
    2000
    2.5
    0.61
    Add to Quote
    PBF6053A
    150
    51.5
    M16
    12.5
    132
    110
    168
    4
    13000
    5200
    2.5
    1.9
    Add to Quote
    PBF6054A
    177
    63
    M20
    13
    150
    125
    184
    4.5
    16800
    4800
    3.5
    3.1
    Add to Quote
    PBF6055A
    192
    70
    M20
    13
    165
    150
    200
    6
    18200
    5200
    3.5
    4.45
    Add to Quote

    Specifications

    變體 PBF6055A
    P/N PBF6052A
    D 101
    H 40
    G M12
    d 9
    m 88
    D2 60
    L 108
    s 3
    Permissible Permanent Static Load (N) 5000
    Spring Load N/mm +/-20% (64ShA) 2000
    Travel (mm) (64ShA) 2.5
    Weight (kg) 0.61
