AS-568 標準 O-Ring（美規）
AS-568 是美國航空航太標準協會（SAE）制定的 O-ring 規格，廣泛應用於工業密封領域。此系列尺寸統一，便於設計、選型與替換，深受歐美市場青睞。
產品特性：
- 尺寸依據 SAE AS568 規範標準化
- 提供多種材質（如 NBR、EPDM、FKM、VMQ）以滿足不同應用需求
- 適用於靜態與動態密封場合
- 常見於汽車、流體控制、液壓與氣動系統

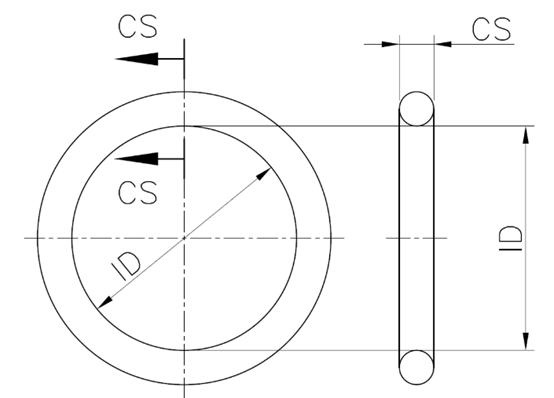

規格
Item
變體
AS-568
ID
OD
C/S
加入詢價車
AS 001
AS 001
0.74
2.78
1.02
AS 002
AS 002
1.07
3.61
1.27
AS 003
AS 003
1.42
4.48
1.53
AS 004
AS 004
1.78
5.34
1.78
AS 005
AS 005
2.57
6.13
1.78
AS 006
AS 006
2.9
6.46
1.78
AS 007
AS 007
3.69
7.25
1.78
AS 008
AS 008
4.47
8.03
1.78
AS 009
AS 009
5.29
8.85
1.78
AS 010
AS 010
6.07
9.63
1.78
AS 011
AS 011
7.65
11.21
1.78
AS 012
AS 012
9.25
12.81
1.78
AS 013
AS 013
10.82
14.38
1.78
AS 014
AS 014
12.42
15.98
1.78
AS 015
AS 015
14
17.56
1.78
AS 016
AS 016
15.6
19.16
1.78
AS 017
AS 017
17.17
20.73
1.78
AS 018
AS 018
18.77
22.33
1.78
AS 019
AS 019
20.35
23.91
1.78
AS 020
AS 020
21.95
25.51
1.78
AS 021
AS 021
23.52
27.08
1.78
AS 022
AS 022
25.12
28.68
1.78
AS 023
AS 023
26.7
30.26
1.78
AS 024
AS 024
28.3
31.86
1.78
AS 025
AS 025
29.87
33.43
1.78
AS 026
AS 026
31.47
35.03
1.78
AS 027
AS 027
33.05
36.61
1.78
AS 028
AS 028
34.65
38.21
1.78
AS 029
AS 029
37.82
41.38
1.78
AS 030
AS 030
41
44.56
1.78
AS 031
AS 031
44.17
47.73
1.78
AS 032
AS 032
47.35
50.91
1.78
AS 033
AS 033
50.52
54.08
1.78
AS 034
AS 034
53.7
57.26
1.78
AS 035
AS 035
56.87
60.43
1.78
AS 036
AS 036
60.04
63.6
1.78
AS 037
AS 037
63.22
66.78
1.78
AS 038
AS 038
66.4
69.96
1.78
AS 039
AS 039
69.47
73.13
1.78
AS 040
AS 040
72.75
76.31
1.78
AS 041
AS 041
75.92
79.48
1.78
AS 042
AS 042
82.27
85.83
1.78
AS 043
AS 043
88.62
92.18
1.78
AS 044
AS 044
94.97
98.53
1.78
AS 045
AS 045
101.32
104.88
1.78
AS 046
AS 046
107.62
111.18
1.78
AS 047
AS 047
114.02
117.58
1.78
AS 048
AS 048
120.37
123.93
1.78
AS 049
AS 049
126.72
130.28
1.78
AS 050
AS 050
133.07
136.28
1.78
AS 102
AS 102
1.24
6.48
2.62
AS 103
AS 103
2.05
7.29
2.62
AS 104
AS 104
2.84
8.08
2.62
AS 105
AS 105
3.63
8.87
2.62
AS 106
AS 106
4.42
9.66
2.62
AS 107
AS 107
5.23
10.47
2.62
AS 108
AS 108
6.02
11.26
2.62
AS 109
AS 109
7.65
12.84
2.62
AS 110
AS 110
9.19
14.43
2.62
AS 111
AS 111
10.77
16.01
2.62
AS 112
AS 112
12.37
17.61
2.62
AS 113
AS 113
13.95
19.19
2.62
AS 114
AS 114
15.54
20.78
2.62
AS 115
AS 115
17.12
22.36
2.62
AS 116
AS 116
18.72
23.96
2.62
AS 117
AS 117
20.29
25.53
2.62
AS 118
AS 118
21.9
27.14
2.62
AS 119
AS 119
23.47
28.71
2.62
AS 120
AS 120
25.07
30.31
2.62
AS 121
AS 121
26.65
31.89
2.62
AS 122
AS 122
28.25
33.49
2.62
AS 123
AS 123
29.82
35.06
2.62
AS 124
AS 124
31.42
36.66
2.62
AS 125
AS 125
32.99
38.23
2.62
AS 126
AS 126
34.6
39.84
2.62
AS 127
AS 127
36.17
41.41
2.62
AS 128
AS 128
37.77
43.01
2.62
AS 129
AS 129
39.35
44.59
2.62
AS 130
AS 130
40.95
46.19
2.62
AS 131
AS 131
42.52
47.76
2.62
AS 132
AS 132
44.12
49.36
2.62
AS 133
AS 133
45.7
50.94
2.62
AS 134
AS 134
47.3
52.54
2.62
AS 135
AS 135
48.9
54.14
2.62
AS 136
AS 136
50.47
55.17
2.62
AS 137
AS 137
52.07
57.31
2.62
AS 138
AS 138
53.65
58.89
2.62
AS 139
AS 139
55.25
60.49
2.62
AS 140
AS 140
56.82
62.06
2.62
AS 141
AS 141
58.42
63.66
2.62
AS 142
AS 142
60
65.24
2.62
AS 143
AS 143
61.6
66.84
2.62
AS 144
AS 144
63.17
68.41
2.62
AS 145
AS 145
64.77
70.01
2.62
AS 146
AS 146
66.35
71.59
2.62
AS 147
AS 147
67.95
73.19
2.62
AS 148
AS 148
69.52
74.76
2.62
AS 149
AS 149
71.12
76.36
2.62
AS 150
AS 150
72.7
77.94
2.62
AS 151
AS 151
75.87
81.11
2.62
AS 152
AS 152
82.22
87.46
2.62
AS 153
AS 153
88.57
93.81
2.62
AS 154
AS 154
94.92
100.16
2.62
AS 155
AS 155
101.27
106.51
2.62
AS 156
AS 156
107.62
112.86
2.62
AS 157
AS 157
113.97
119.21
2.62
AS 158
AS 158
120.32
125.56
2.62
AS 159
AS 159
126.67
131.91
2.62
AS 160
AS 160
133.02
138.26
2.62
AS 161
AS 161
139.37
144.61
2.62
AS 162
AS 162
145.72
150.96
2.62
AS 163
AS 163
152.07
157.31
2.62
AS 164
AS 164
158.42
163.66
2.62
AS 165
AS 165
164.77
170.01
2.62
AS 166
AS 166
171.12
176.36
2.62
AS 167
AS 167
177.47
182.71
2.62
AS 168
AS 168
183.82
189.06
2.62
AS 169
AS 169
190.17
195.41
2.62
AS 170
AS 170
196.52
201.76
2.62
AS 171
AS 171
202.87
208.11
2.62
AS 172
AS 172
209.22
214.46
2.62
AS 173
AS 173
215.57
220.81
2.62
AS 174
AS 174
221.92
227.16
2.62
AS 175
AS 175
228.27
233.51
2.62
AS 176
AS 176
234.62
239.86
2.62
AS 177
AS 177
240.97
246.21
2.62
AS 178
AS 178
247.32
252.56
2.62
AS 201
AS 201
4.34
11.4
3.53
AS 202
AS 202
5.94
13
3.53
AS 203
AS 203
7.52
14.58
3.53
AS 204
AS 204
9.12
16.18
3.53
AS 205
AS 205
10.69
17.75
3.53
AS 206
AS 206
12.29
19.35
3.53
AS 207
AS 207
13.87
20.93
3.53
AS 208
AS 208
15.47
22.53
3.53
AS 209
AS 209
17.04
24.1
3.53
AS 210
AS 210
18.64
25.7
3.53
AS 211
AS 211
20.22
27.28
3.53
AS 212
AS 212
21.82
28.88
3.53
AS 213
AS 213
23.47
30.46
3.53
AS 214
AS 214
25
32.06
3.53
AS 215
AS 215
26.57
33.63
3.53
AS 216
AS 216
28.17
35.23
3.53
AS 217
AS 217
29.75
36.81
3.53
AS 218
AS 218
31.34
38.4
3.53
AS 219
AS 219
32.92
39.98
3.53
AS 220
AS 220
34.52
41.58
3.53
AS 221
AS 221
36.17
43.16
3.53
AS 222
AS 222
37.77
44.76
3.53
AS 223
AS 223
40.87
47.93
3.53
AS 224
AS 224
44.05
51.11
3.53
AS 225
AS 225
47.22
54.28
3.53
AS 226
AS 226
50.4
57.46
3.53
AS 227
AS 227
53.57
60.63
3.53
AS 228
AS 228
56.75
63.81
3.53
AS 229
AS 229
59.92
66.98
3.53
AS 230
AS 230
63.1
70.16
3.53
AS 231
AS 231
66.27
73.33
3.53
AS 232
AS 232
69.44
76.5
3.53
AS 233
AS 233
72.62
79.68
3.53
AS 234
AS 234
75.79
75.79
3.53
AS 235
AS 235
78.97
86.03
3.53
AS 236
AS 236
82.14
89.2
3.53
AS 237
AS 237
85.32
92.38
3.53
AS 238
AS 238
88.49
95.55
3.53
AS 239
AS 239
91.67
98.73
3.53
AS 240
AS 240
94.84
101.9
3.53
AS 241
AS 241
98.02
105.08
3.53
AS 242
AS 242
101.19
108.25
3.53
AS 243
AS 243
104.37
111.43
3.53
AS 244
AS 244
107.54
114.43
3.53
AS 245
AS 245
110.72
117.78
3.53
AS 246
AS 246
113.89
120.95
3.53
AS 247
AS 247
117.07
124.13
3.53
AS 248
AS 248
120.24
127.3
3.53
AS 249
AS 249
123.42
130.48
3.53
AS 250
AS 250
126.59
133.65
3.53
AS 251
AS 251
129.77
136.83
3.53
AS 252
AS 252
132.94
140
3.53
AS 253
AS 253
136.12
143.18
3.53
AS 254
AS 254
139.3
146.36
3.53
AS 255
AS 255
142.47
149.53
3.53
AS 256
AS 256
145.65
152.71
3.53
AS 257
AS 257
148.82
155.88
3.53
AS 258
AS 258
152
159.06
3.53
AS 259
AS 259
158.35
165.41
3.53
AS 260
AS 260
164.7
171.76
3.53
AS 261
AS 261
171.05
178.11
3.53
AS 262
AS 262
177.4
184.46
3.53
AS 263
AS 263
183.75
190.81
3.53
AS 264
AS 264
190.1
197.16
3.53
AS 265
AS 265
196.45
203.51
3.53
AS 266
AS 266
202.8
209.86
3.53
AS 267
AS 267
209.15
216.21
3.53
AS 268
AS 268
215.5
222.56
3.53
AS 269
AS 269
221.85
228.91
3.53
AS 270
AS 270
228.2
235.26
3.53
AS 271
AS 271
234.55
241.61
3.53
AS 272
AS 272
240.9
247.96
3.53
AS 273
AS 273
247.25
254.31
3.53
AS 274
AS 274
253.6
260.66
3.53
AS 275
AS 275
266.3
273.36
3.53
AS 276
AS 276
279
286.06
3.53
AS 277
AS 277
291.7
298.76
3.53
AS 278
AS 278
304.4
311.46
3.53
AS 279
AS 279
329.8
336.86
3.53
AS 280
AS 280
355.2
362.26
3.53
AS 281
AS 281
380.6
387.66
3.53
AS 282
AS 282
405.26
412.32
3.53
AS 283
AS 283
430.66
437.72
3.53
AS 284
AS 284
456.06
463.12
3.53
AS 309
AS 309
10.46
21.12
3.53
AS 310
AS 310
12.07
22.73
5.33
AS 311
AS 311
13.64
24.3
5.33
AS 312
AS 312
15.24
25.9
5.33
AS 313
AS 313
16.81
27.47
5.33
AS 314
AS 314
18.42
29.08
5.33
AS 315
AS 315
19.99
30.65
5.33
AS 316
AS 316
21.59
32.25
5.33
AS 317
AS 317
23.16
33.82
5.33
AS 318
AS 318
24.77
35.43
5.33
AS 319
AS 319
26.34
37
5.33
AS 320
AS 320
27.94
38.6
5.33
AS 321
AS 321
29.51
40.17
5.33
AS 322
AS 322
31.12
41.78
5.33
AS 323
AS 323
32.69
43.35
5.33
AS 324
AS 324
34.29
44.95
5.33
AS 325
AS 325
37.47
48.13
5.33
AS 326
AS 326
40.65
51.31
5.33
AS 327
AS 327
43.82
54.48
5.33
AS 328
AS 328
46.99
57.65
5.33
AS 329
AS 329
50.16
60.82
5.33
AS 330
AS 330
53.34
64
5.33
AS 331
AS 331
56.52
67.18
5.33
AS 332
AS 332
59.69
70.35
5.33
AS 333
AS 333
62.87
73.53
5.33
AS 334
AS 334
66.04
76.7
5.33
AS 335
AS 335
69.22
79.88
5.33
AS 336
AS 336
72.39
83.05
5.33
AS 337
AS 337
75.57
86.23
5.33
AS 338
AS 338
78.74
89.4
5.33
AS 339
AS 339
81.92
92.58
5.33
AS 340
AS 340
85.09
95.75
5.33
AS 341
AS 341
88.27
98.93
5.33
AS 342
AS 342
91.44
102.1
5.33
AS 343
AS 343
94.62
105.28
5.33
AS 344
AS 344
97.79
108.45
5.33
AS 345
AS 345
100.96
111.62
5.33
AS 346
AS 346
104.14
114.8
5.33
AS 347
AS 347
107.32
117.98
5.33
AS 348
AS 348
110.48
121.15
5.33
AS 349
AS 349
113.67
124.33
5.33
AS 350
AS 350
116.84
127.5
5.33
AS 351
AS 351
120.02
130.68
5.33
AS 352
AS 352
123.19
133.85
5.33
AS 353
AS 353
126.37
137.03
5.33
AS 354
AS 354
129.54
140.2
5.33
AS 355
AS 355
132.72
143.38
5.33
AS 356
AS 356
135.89
146.55
5.33
AS 357
AS 357
139.07
149.73
5.33
AS 358
AS 358
142.24
152.9
5.33
AS 359
AS 359
145.42
156.08
5.33
AS 360
AS 360
148.59
159.25
5.33
AS 361
AS 361
151.77
162.43
5.33
AS 362
AS 362
158.12
168.78
5.33
AS 363
AS 363
164.47
175.13
5.33
AS 364
AS 364
170.82
181.48
5.33
AS 365
AS 365
177.17
187.83
5.33
AS 366
AS 366
183.52
194.18
5.33
AS 367
AS 367
189.87
200.53
5.33
AS 368
AS 368
196.22
206.88
5.33
AS 369
AS 369
202.57
213.23
5.33
AS 370
AS 370
208.92
219.58
5.33
AS 371
AS 371
215.27
225.93
5.33
AS 372
AS 372
221.62
232.28
5.33
AS 373
AS 373
227.62
238.63
5.33
AS 374
AS 374
234.32
244.98
5.33
AS 375
AS 375
240.67
251.33
5.33
AS 376
AS 376
247.02
257.68
5.33
AS 377
AS 377
253.37
264.03
5.33
AS 378
AS 378
266.07
276.73
5.33
AS 379
AS 379
278.77
289.43
5.33
AS 380
AS 380
291.47
302.13
5.33
AS 381
AS 381
304.17
314.83
5.33
AS 382
AS 382
329.55
340.21
5.33
AS 383
AS 383
354.97
365.63
5.33
AS 384
AS 384
380.37
391.03
5.33
AS 385
AS 385
405.26
415.92
5.33
AS 386
AS 386
430.65
441.31
5.33
AS 387
AS 387
456.06
466.72
5.33
AS 388
AS 388
481.46
492.12
5.33
AS 389
AS 389
506.86
517.52
5.33
AS 390
AS 390
532.26
542.92
5.33
AS 391
AS 391
557.66
568.32
5.33
AS 392
AS 392
582.65
593.31
5.33
AS 393
AS 393
608.1
618.76
5.33
AS 394
AS 394
633.5
644.16
5.33
AS 395
AS 395
658.85
669.51
5.33
AS 425
AS 425
113.67
127.65
6.99
AS 426
AS 426
116.84
130.82
6.99
AS 427
AS 427
120.02
134
6.99
AS 428
AS 428
123.19
137.17
6.99
AS 429
AS 429
126.37
140.35
6.99
AS 430
AS 430
129.54
143.52
6.99
AS 431
AS 431
132.72
146.7
6.99
AS 432
AS 432
135.89
149.87
6.99
AS 433
AS 433
139.07
153.05
6.99
AS 434
AS 434
142.24
156.22
6.99
AS 435
AS 435
145.42
159.4
6.99
AS 436
AS 436
148.59
162.57
6.99
AS 437
AS 437
151.77
165.75
6.99
AS 438
AS 438
158.12
172.1
6.99
AS 439
AS 439
164.47
178.45
6.99
AS 440
AS 440
170.82
184.8
6.99
AS 441
AS 441
177.17
191.15
6.99
AS 442
AS 442
183.52
197.5
6.99
AS 443
AS 443
189.87
203.85
6.99
AS 444
AS 444
196.22
210.2
6.99
AS 445
AS 445
202.57
216.55
6.99
AS 446
AS 446
215.27
229.25
6.99
AS 447
AS 447
227.97
241.95
6.99
AS 448
AS 448
240.67
254.65
6.99
AS 449
AS 449
253.37
267.35
6.99
AS 450
AS 450
266.07
280.05
6.99
AS 451
AS 451
278.77
292.75
6.99
AS 452
AS 452
291.47
305.45
6.99
AS 453
AS 453
304.17
318.15
6.99
AS 454
AS 454
316.87
330.85
6.99
AS 455
AS 455
329.57
343.55
6.99
AS 456
AS 456
342.27
356.25
6.99
AS 457
AS 457
354.97
368.95
6.99
AS 458
AS 458
367.67
381.65
6.99
AS 459
AS 459
380.37
394.35
6.99
AS 460
AS 460
393.07
407.05
6.99
AS 461
AS 461
405.26
419.24
6.99
AS 462
AS 462
417.96
431.94
6.99
AS 463
AS 463
430.66
444.64
6.99
AS 464
AS 464
443.36
457.34
6.99
AS 465
AS 465
456.06
470.04
6.99
AS 466
AS 466
468.76
482.74
6.99
AS 467
AS 467
481.46
495.44
6.99
AS 468
AS 468
494.16
508.14
6.99
AS 469
AS 469
506.86
520.84
6.99
AS 470
AS 470
532.26
546.24
6.99
AS 471
AS 471
557.66
571.65
6.99
AS 472
AS 472
582.65
596.63
6.99
AS 473
AS 473
608.1
622.08
6.99
AS 474
AS 474
633.5
647.48
6.99
AS 475
AS 475
658.85
672.83
6.99
AS 901
AS 901
4.7
7.54
1.42
AS 902
AS 902
6.07
9.33
1.63
AS 903
AS 903
7.65
10.91
1.63
AS 904
AS 904
8.92
12.58
1.63
AS 905
AS 905
10.52
14.18
1.63
AS 906
AS 906
11.89
15.85
1.63
AS 907
AS 907
13.46
17.62
1.98
AS 908
AS 908
16.36
20.78
2.08
AS 909
AS 909
17.94
22.86
2.21
AS 910
AS 910
19.18
24.1
2.46
AS 911
AS 911
21.92
27.82
2.95
AS 912
AS 912
23.47
29.37
2.95
AS 913
AS 913
25.04
30.94
2.95
AS 914
AS 914
26.6
32.5
2.95
AS 916
AS 916
29.75
35.65
2.95
AS 918
AS 918
34.42
40.32
2.95
AS 920
AS 920
37.46
43.46
3
AS 924
AS 924
43.68
49.68
3
AS 928
AS 928
53.09
59.09
3
AS 932
AS 932
59.36
65.36
3
Specifications
| 變體 | AS 932 |
| AS-568 | AS 001 |
| ID | 0.74 |
| OD | 2.78 |
| C/S | 1.02 |
