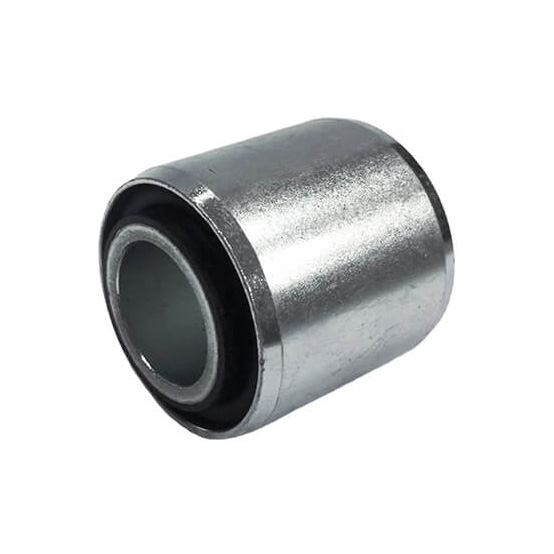

橡膠襯套
- 彈性體： 天然橡膠
- 硬度: 55-75 ShA
- 金屬部分：鍍鋅鋼材

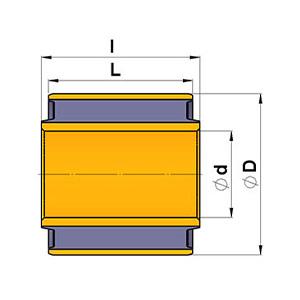

規格
Item
P/N
D
d
I
L
Perm.radial Force Fr N
Radial Spring Rate Cr N/mm²
Perm.axial Force Fa N
Radial Spring Rate Ca N/mm²
Perm.torsion Angle Degrees °
Perm. Static Torque Md Nm
Torsion Spring Rate Cf Nm/°
Max. Torsion Angle Degrees °
Max. Slip Torque Md Nm
加入詢價車
PBF0143
16+0.1
8+0.15
17+/-0.1
15+/-0.2
300
2960
60
320
15
3.75
0.25
30
7.5
PBF0144
20+0.1
8+0.15
17+/-0.1
15+/-0.2
300
1650
60
230
15
3
0.2
30
6
PBF0148
22+0.1
8+0.15
16+/-0.1
10+/-0.2
100
570
140
109
13
1.56
0.12
26
3.12
PBF0145
18+0.1
10+0.15
20+/-0.1
18+/-0.3
300
3400
80
480
15
6.15
0.41
30
12.3
PBF0146
22+0.1
10+0.15
33+/-0.1
30+/-0.3
2800
5890
410
540
15
10.8
0.72
30
21.6
PBF0147
24+0.1
10+0.15
17+/-0.1
14+/-0.2
200
1400
160
200
15
3.75
0.25
30
7.5
PBB2005
25+0.1
10+0.15
24+/-0.1
20+/-0.3
4000
2060
410
220
15
5.1
0.34
30
10.2
PBF0107
26.6+/-0.1
10+0.15
45+/-0.1
20+/-0.3
-
-
-
-
-
-
-
-
-
PBB2006
24+0.1
12+0.15
38+/-0.1
35+/-0.3
3000
6100
1330
550
10
10.6
1.06
20
21.2
PBB2007
25+0.1
12+0.15
28+/-0.1
25+/-0.3
4900
4070
500
415
10
7.9
0.79
20
15.8
PBF0138
26+0.1
12+0.15
24+/-0.1
18+/-0.3
690
2220
680
252
13
6.63
0.51
26
13.26
PBB2008
26+0.1
12+0.15
36+/-0.1
32+/-0.3
1370
3960
840
515
13
12.61
0.97
26
25.22
PBF0130
30+0.1
13+0.15
40+/-0.1
40+/-0.3
1670
3625
2310
450
15
14.85
0.99
30
29.7
PBB2009
30+0.1
14+0.15
76+/-0.1
67+/-0.3
3900
5200
2310
780
15
28.5
1.9
30
57
PBB2010
32+0.15
16+0.2
17+/-0.1
16+/-0.3
1900
1580
310
250
12.5
8.88
0.71
25
17.75
PBB2011
32+0.15
16+0.2
28+/-0.1
25+/-0.3
3600
4560
770
380
15
6.5
1.1
30
33
PBB2012
32+0.15
16+0.2
54+/-0.1
50+/-0.3
3900
4900
1230
590
7.5
13.88
1.85
15
27.75
PBB2013
40+0.15
16+0.2
38+/-0.1
32+/-0.3
1600
1800
320
350
15
16.2
1.08
30
32.4
PBF0139
34+0.15
18+0.3
36+/-0.1
32+/-0.3
1570
4180
830
530
14
23.52
1.68
28
47.04
PBF0131
45+0.15
20+0.3
62.5+/-0.2
55+/-0.3
3430
5435
1860
585
15
44.55
2.97
30
89.1
PBF0132
45+0.15
20+0.3
62.5+/-0.2
59.5+/-0.3
3900
4820
910
530
15
37.95
2.53
30
75.9
PBB2014
42+0.15
24+0.3
96+/-0.2
90+/-0.3
3900
8460
5040
1744
5
54.65
10.93
10
109.3
PBF0133
50+0.15
25+0.3
67.5+/-0.2
65.5+/-0.3
6380
9800
760
975
15
84
5.6
30
168
PBF0134
55+0.15
25+0.3
93.5+/-0.2
89.5+/-0.3
9800
10350
1650
1015
10
83.3
8.33
20
166.6
PBB2015
40+0.15
26+0.3
45+/-0.1
40+/-0.3
4900
7830
2550
940
7
38.22
5.46
14
76.44
PBF0135
55+0.15
30+0.3
94+/-0.2
89.5+/-0.3
13700
17460
2600
1490
10
131.3
13.13
20
262.6
PBB2016
56+0.15
30+0.3
55+/-0.2
50+/-0.3
15000
7660
1300
905
12.5
87.63
7.01
25
175.25
PBF0137
75+0.2
40+0.3
70+/-0.2
57+/-0.3
5900
6910
4510
880
14
210
15
28
420
PBF0136
70+0.15
50+0.3
60+/-0.2
60+/-0.3
11700
15970
2940
2020
3
50.9
50.3
6
301.8
PBB2017
80+0.2
50+0.3
100+/-0.2
95+/-0.3
14700
14960
3430
1740
8
150.4
18.8
16
300.8
Specifications
| 變體 | PBB2017 |
| P/N | PBF0143 |
| D | 16+0.1 |
| d | 8+0.15 |
| I | 17+/-0.1 |
| L | 15+/-0.2 |
| Perm.radial Force Fr N | 300 |
| Radial Spring Rate Cr N/mm² | 2960 |
| Perm.axial Force Fa N | 60 |
| Radial Spring Rate Ca N/mm² | 320 |
| Perm.torsion Angle Degrees ° | 15 |
| Perm. Static Torque Md Nm | 3.75 |
| Torsion Spring Rate Cf Nm/° | 0.25 |
| Max. Torsion Angle Degrees ° | 30 |
| Max. Slip Torque Md Nm | 7.5 |
