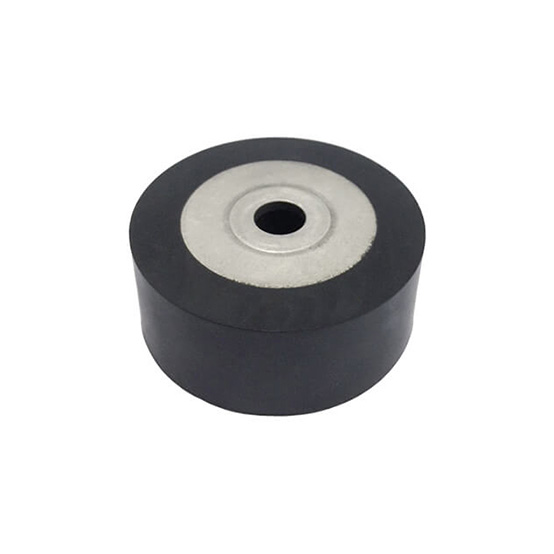

TYPE MBF 避震墊.腳墊
- 單側開孔式橡膠避震墊
- 彈性體：天然橡膠NR / NBR
- 硬度: 50/60/70 ShA
- 金屬部分: 鍍鋅鋼材 1.4301 or Zinc Plated
- 公差: ISO 3302-1 M2
規格
Item
P/N
D
H
B
d
s
Spring Load N/mm
Weight (g)
Permiss. Load N/mm
Travel ±20%
加入詢價車
PBF8012A
15
15
M4
8
1.0
25
3
100
4.0
PBF8001A
15
8
M4
8
1.0
82
2
160
2
PBF8013A
20
15
M5
10
1.2
55
5
220
4.0
PBF8014A
20
20
M5
10
1.2
40
7
190
5.0
PBF8015A
25
20
M6
12.5
1.5
55
11
350
6.0
PBF8002A
20
10
M5
10
1.2
111
5
280
2.5
PBF8003A
25
12
M6
12.5
1.5
149
9
430
3
PBF8016A
30
20
M8
14
2
110
19
550
5.0
PBF8017A
30
30
M8
14
2
65
25
500
7.5
PBF8004A
35
15
M8
14
2.0
291
23
1140
4
PBF8018A
40
20
M8
16
2
240
35
1200
5.0
PBF8019A
40
20
M10
16
2.5
240
37
1200
5.0
PBF8020A
40
30
M8
16
2
130
48
1000
7.5
PBF8021A
40
30
M10
16
2.5
135
50
1000
7.5
PBF8022A
40
40
M8
16
2
95
60
1000
10.0
PBF8023A
40
40
M10
16
2.5
95
62
1000
10.0
PBF8005A
45
20
M8
18
2.0
321
47
1640
5
PBF8006A
45
20
M10
18
2.5
336
49
1640
5
PBF8024A
50
25
M8
20
2
260
64
1600
6.0
PBF8025A
50
25
M10
20
2.5
270
68
1600
6.0
PBF8026A
50
25
M12
20
3
270
74
1600
6.0
PBF8027A
50
30
M10
20
2.5
205
78
1600
7.5
PBF8028A
50
30
M12
20
3
205
80
1600
7.5
PBF8029A
50
40
M10
20
2.5
140
97
1400
10.0
PBF8030A
50
40
M12
20
3
140
100
1400
10.0
PBF8007A
60
25
M8
20
2.0
509
104
3100
6
PBF8008A
60
25
M10
20
2.5
541
108
3100
6
PBF8009A
60
25
M12
20
3.0
539
110
3100
6
PBF8010A
75
30
M10
22
2.5
672
199
5000
7.5
PBF8011A
75
30
M12
22
3.0
672
204
5000
7.5
Specifications
| 變體 | PBF8011A |
| P/N | PBF8012A |
| D | 15 |
| H | 15 |
| B | M4 |
| d | 8 |
| s | 1.0 |
| Spring Load N/mm | 25 |
| Weight (g) | 3 |
| Permiss. Load N/mm | 100 |
| Travel ±20% | 4.0 |
