TYPE MBF Rubber Buffers

TYPE MBF
TYPE MBF Rubber Buffers

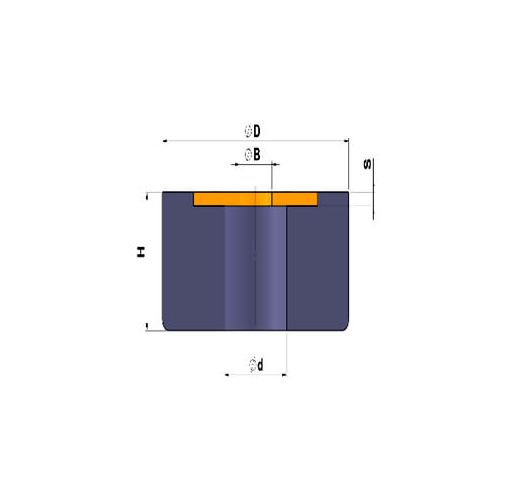

Rubber buffer with one side mounting bore
Elastomer: Natural Rubber,
Hardness: 50/60/70 ShA
Metal part: Stainless steel 1.4301 or zinc plated
Tolerance: ISO 3302-1 M2

No. P/N D H B d s Spring Load
N/mm		 Permiss. Load
N/mm		 Travel
±20%		 Weight g INQUIRY
PBF8012A 15 15 M4 8 1 25 100 4.0 3
PBF8001A 15 8 M4 8 1.0 82 160 2 2
PBF8013A 20 15 M5 10 1.2 55 220 4.0 5
PBF8014A 20 20 M5 10 1.2 40 190 5.0 7
PBF8015A 25 20 M6 12.5 1.5 55 350 6.0 11
PBF8002A 20 10 M5 10 1.2 111 280 2.5 5
PBF8003A 25 12 M6 12.5 1.5 149 430 3 9
PBF8016A 30 20 M8 14 2 110 550 5.0 19
PBF8017A 30 30 M8 14 2 65 500 7.5 25
PBF8004A 35 15 M8 14 2.0 291 1140 4 23
PBF8018A 40 20 M8 16 2 240 1200 5.0 35
PBF8019A 40 20 M10 16 2.5 240 1200 5.0 37
PBF8020A 40 30 M8 16 2 130 1000 7.5 48
PBF8021A 40 30 M10 16 2.5 135 1000 7.5 50
PBF8022A 40 40 M8 16 2 95 1000 10.0 60
PBF8023A 40 40 M10 16 2.5 95 1000 10.0 62
PBF8005A 45 20 M8 18 2.0 321 1640 5 47
PBF8006A 45 20 M10 18 2.5 336 1640 5 49
PBF8024A 50 25 M8 20 2 260 1600 6.0 64
PBF8025A 50 25 M10 20 2.5 270 1600 6.0 68
PBF8026A 50 25 M12 20 3 270 1600 6.0 74
PBF8027A 50 30 M10 20 2.5 205 1600 7.5 78
PBF8028A 50 30 M12 20 3 205 1600 7.5 80
PBF8029A 50 40 M10 20 2.5 140 1400 10.0 97
PBF8030A 50 40 M12 20 3 140 1400 10.0 100
PBF8007A 60 25 M8 20 2.0 509 3100 6 104
PBF8008A 60 25 M10 20 2.5 541 3100 6 108
PBF8009A 60 25 M12 20 3.0 539 3100 6 110
PBF8010A 75 30 M10 22 2.5 672 5000 7.5 199
PBF8011A 75 30 M12 22 3.0 672 5000 7.5 204
